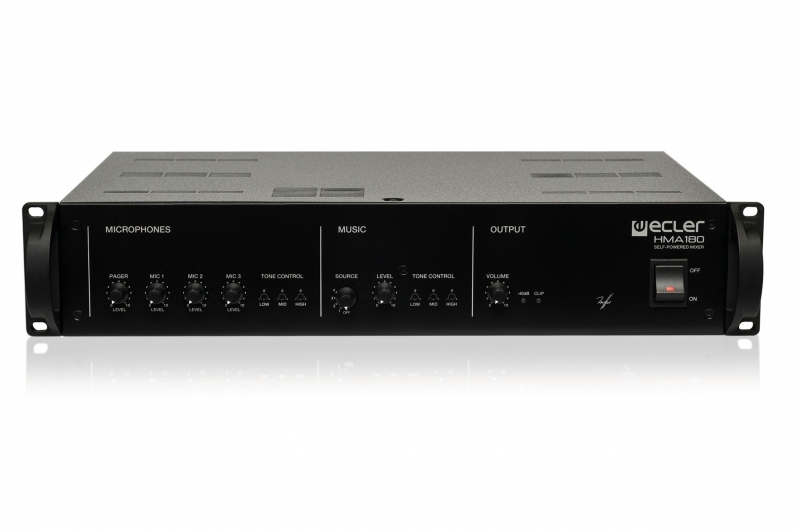

ECLER HMA180 (discontinued) Back
ECLER
Self-powered installation PA Mixer
Specifications:
- 4 MIC balanced inputs, with bus phantom power (selectable)
- 4 LINE inputs
- Independent 3 band EQ for the MIC inputs mix bus
- Independent 3 band EQ for the LINE inputs bus
- Pager & chime function, MIC1 input (voice level or contact closure activation)
- Additional EMERGENCY MIC/LINE input with independent features:
- Selectable phantom power
- 3 band EQ
- Activation mode: VOICE / CONTACT
- Independent output volume level (ignores the MASTER volume adjusted for the rest of the audio signals mix, assuring a pre-defined level for the emergency messages all over the installation)
- Linkable to the included 24 VDC control output (to activate the priority relays in volume control wall panels)
- Remote Volume control port (0 – 10 VDC)
- Remote MUTE control port (to allow an external device MUTE the P.A. system completely)
- 24 VDC control output, linkable to the PAGER and/or EMERGENCY functions (to activate the priority relays remote volume controls)
- Subsonic filter (@ 70 Hz)
- 8Ω , 70 V, 100 V powered output
- LINE level AUX output (allows for an external amplifier connection, like the HSA300 or HZA-F amps, in case that higher power is required)
- Class D 180 W amplifier, convection cooled (100% silent)
